Basic Specifications
Special Function
Thermal Insulated
Working Temperature
-35 to 65 Celsius Degree
Product Description

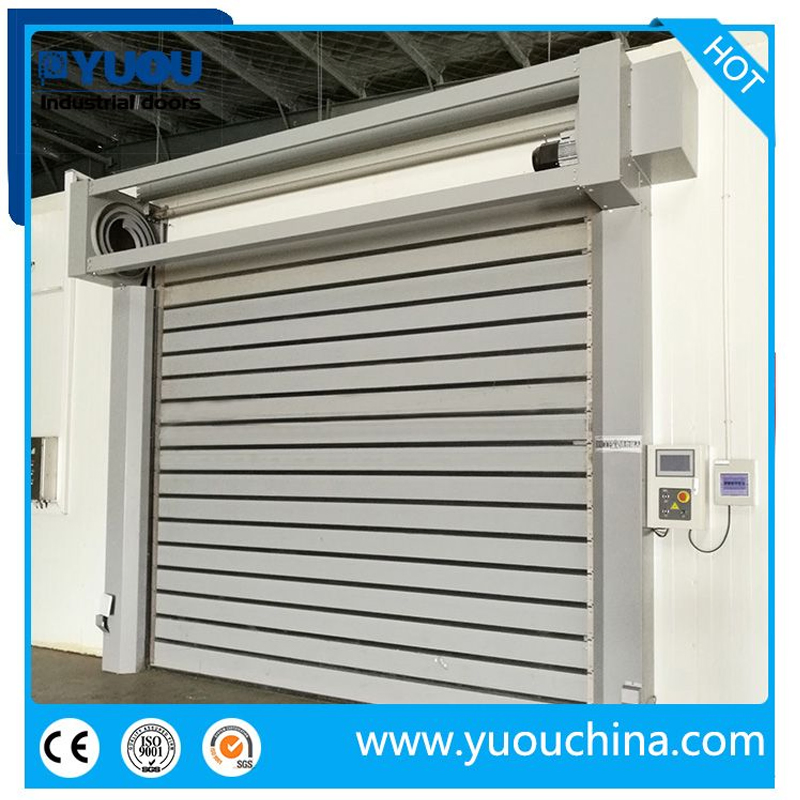

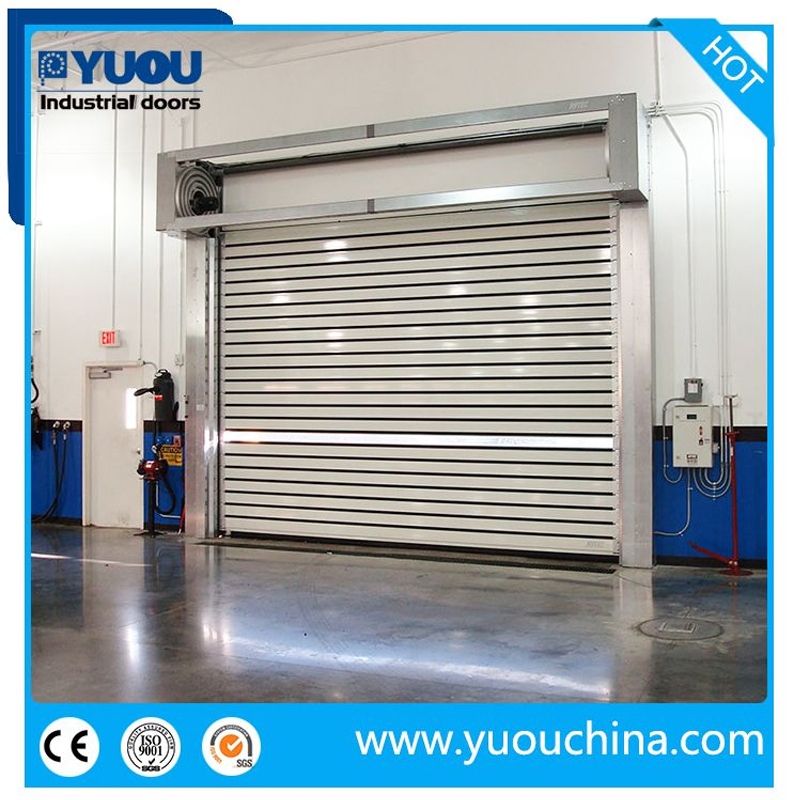

Aluminum alloy high speed doors are applied for areas with high demand of both security, high-strength, thermal insulation and high running speed. Widely used in underground garages, factory exterior, and warehouse exterior.
⚙️ Technical Data
| Max Dimension |
Width * Height: 8000mm * 8000mm |
| Power Supply |
220±10%V, or 380V, 50/60Hz, IP55 |
| Max Opening Speed |
2.0m/s |
| Wind Resistance |
35m/s (Class 12) |
| Sound Insulation |
25DB |
| K Value |
0.4W/m².K |

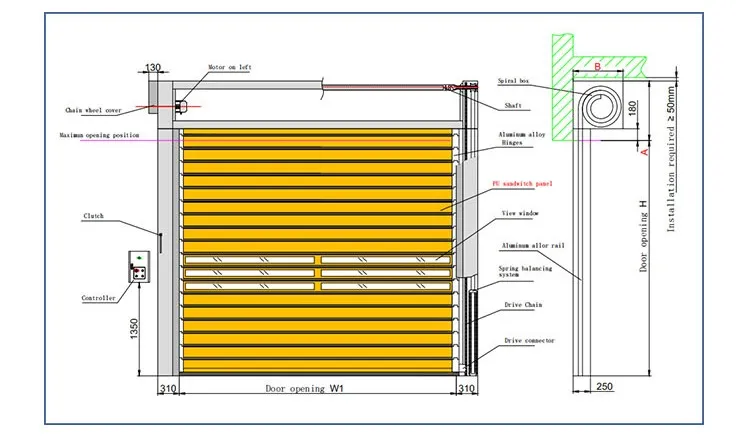

🔍 Structure Diagram
💡 Component Details

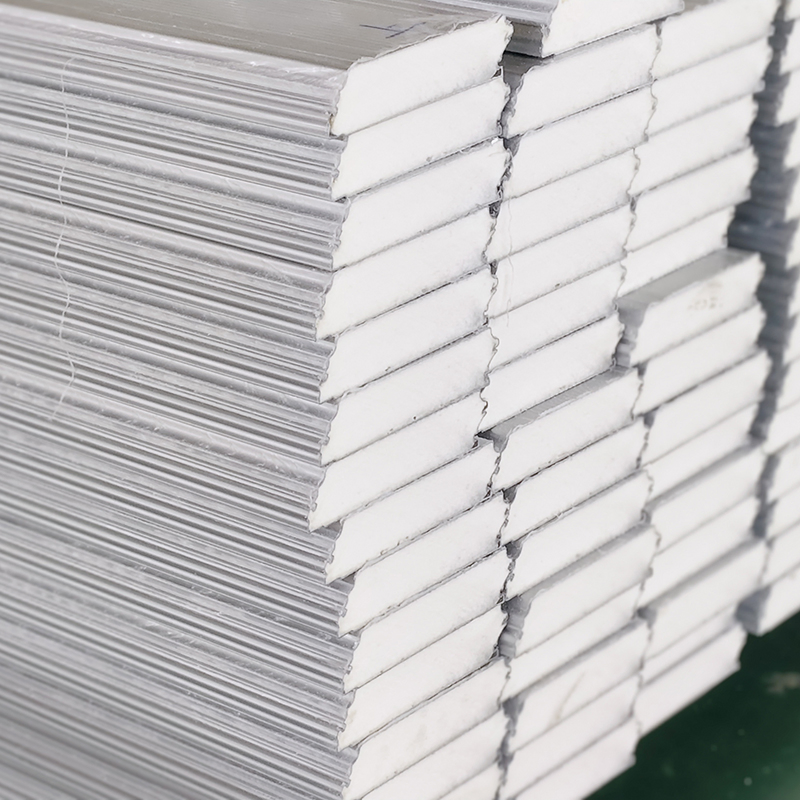

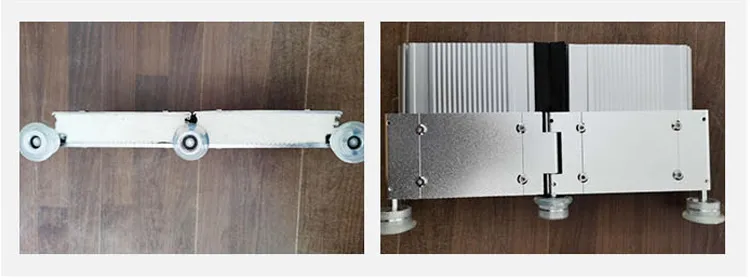

1. Door Panel: Thermal insulated and good wind resist performance. 43mm double layer aluminum alloy sandwich panel.

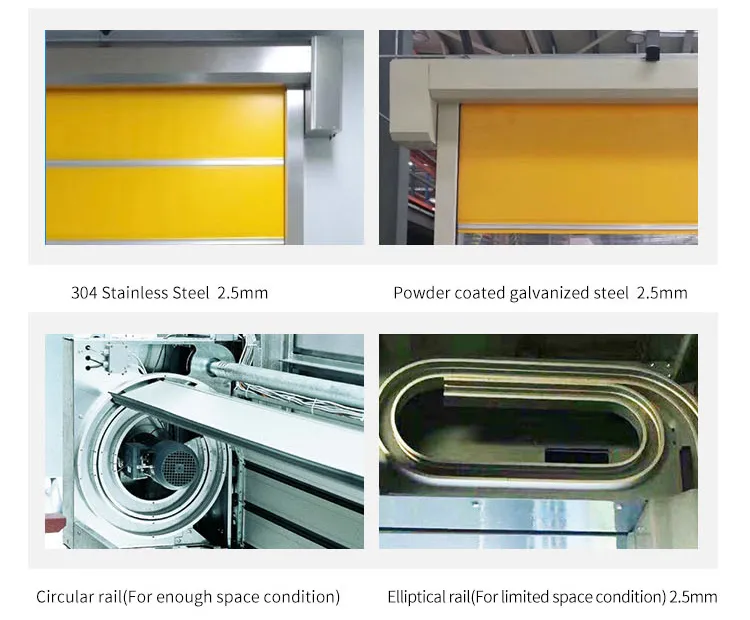

2. Frame and Rails: High strength construction for durability.

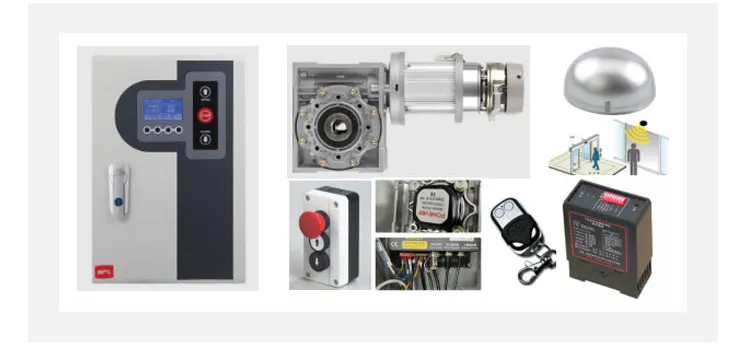

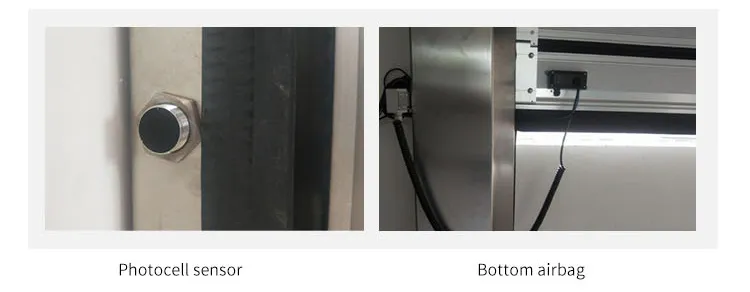

3. Motor and Safety Devices: Includes photocell sensors and bottom airbag.

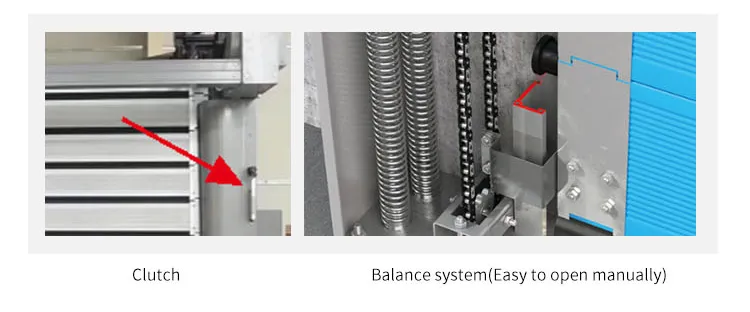

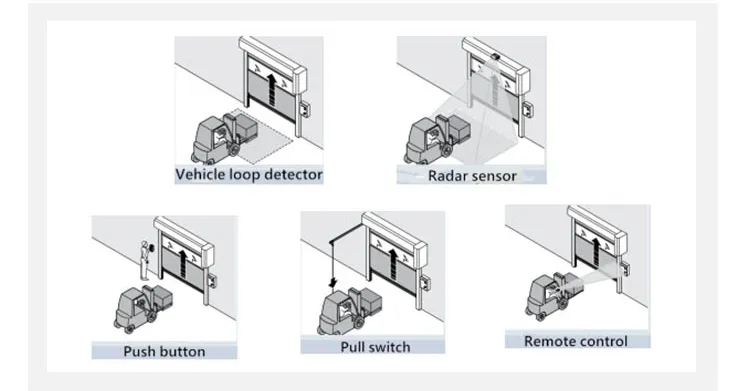

4. Operation & Emergency: Supports multiple operation methods and emergency opening.

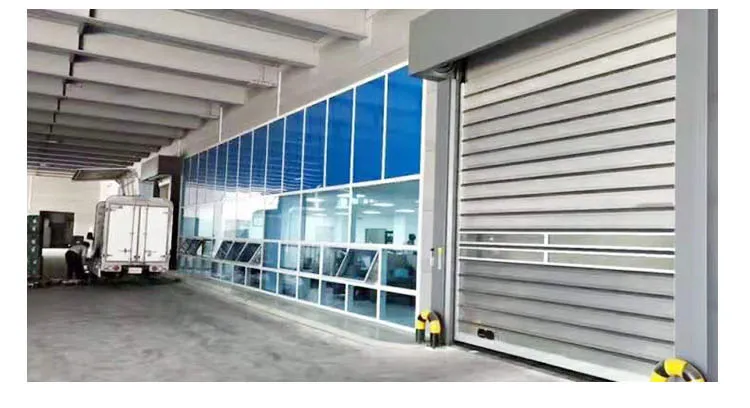

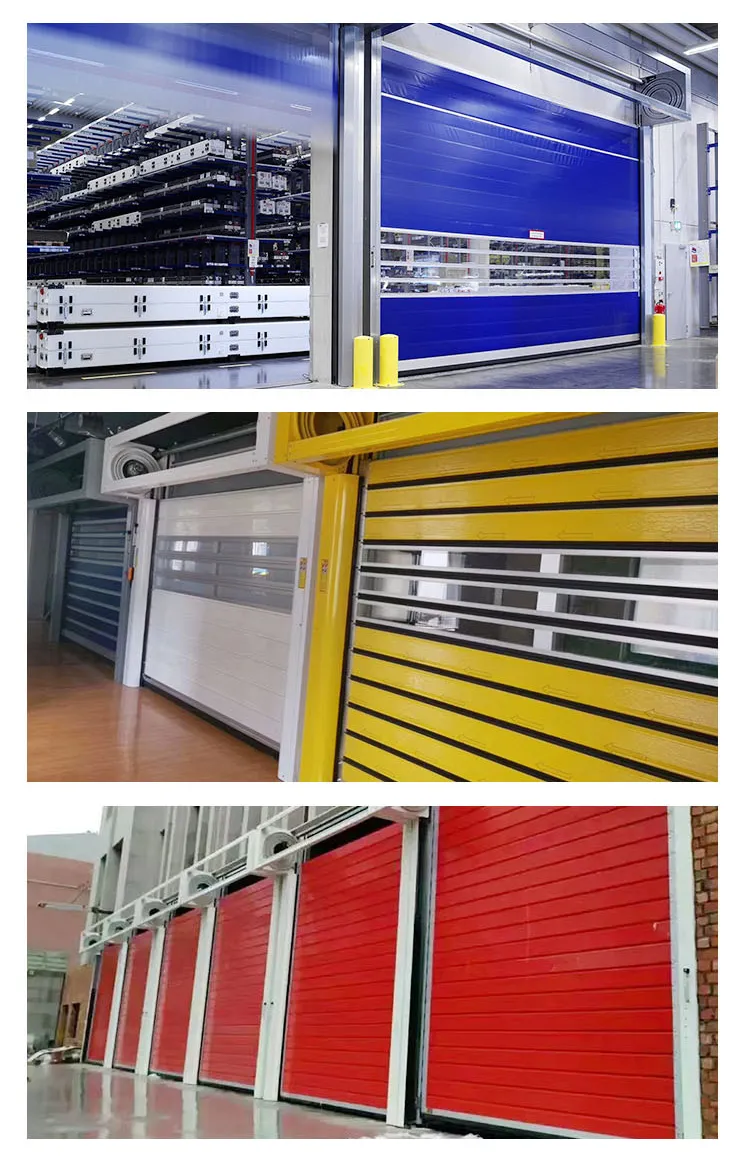

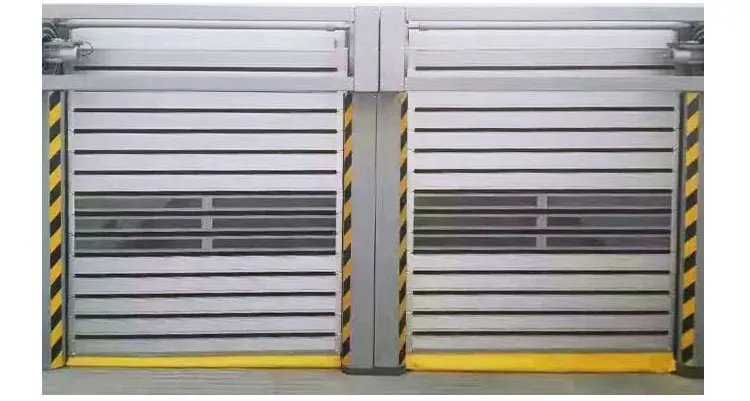

Product Real Shots
Frequently Asked Questions
1. What are the payment terms?
We require a deposit before production, with the balance payment due before shipment.
2. What is the standard delivery time?
The typical lead time is between 7-15 days depending on the order size.
3. What kind of warranty is provided?
We provide a 12-month warranty for all doors and accessories covering product quality issues.
4. Do you offer OEM and ODM services?
Yes, both OEM and ODM services are available to meet specific customer requirements.
5. What is the Minimum Order Quantity (MOQ)?
We accept a minimum of 1 set as a sample order, though discounts are available for larger quantities.
6. How is the after-sales support handled?
We provide comprehensive English installation documents, video guides, and remote technical support via phone or internet.
