Fastlink Customized Warehouse Aluminum Alloy Hallway Electric Insulated Cold Storage Sectional Hinged Doors

1 / 5

Fastlink Customized Warehouse Aluminum Alloy Hallway Electric Insulated Cold Storage Sectional Hinged Doors

Customization:	Available
After-sales Service:	2 Years
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.

SSD-CAV

Material

Aluminum Alloy / Steel

Open Style

Sliding / Sectional

Opening Type

Electric / Manual

Function

Insulation, Wind Resistance

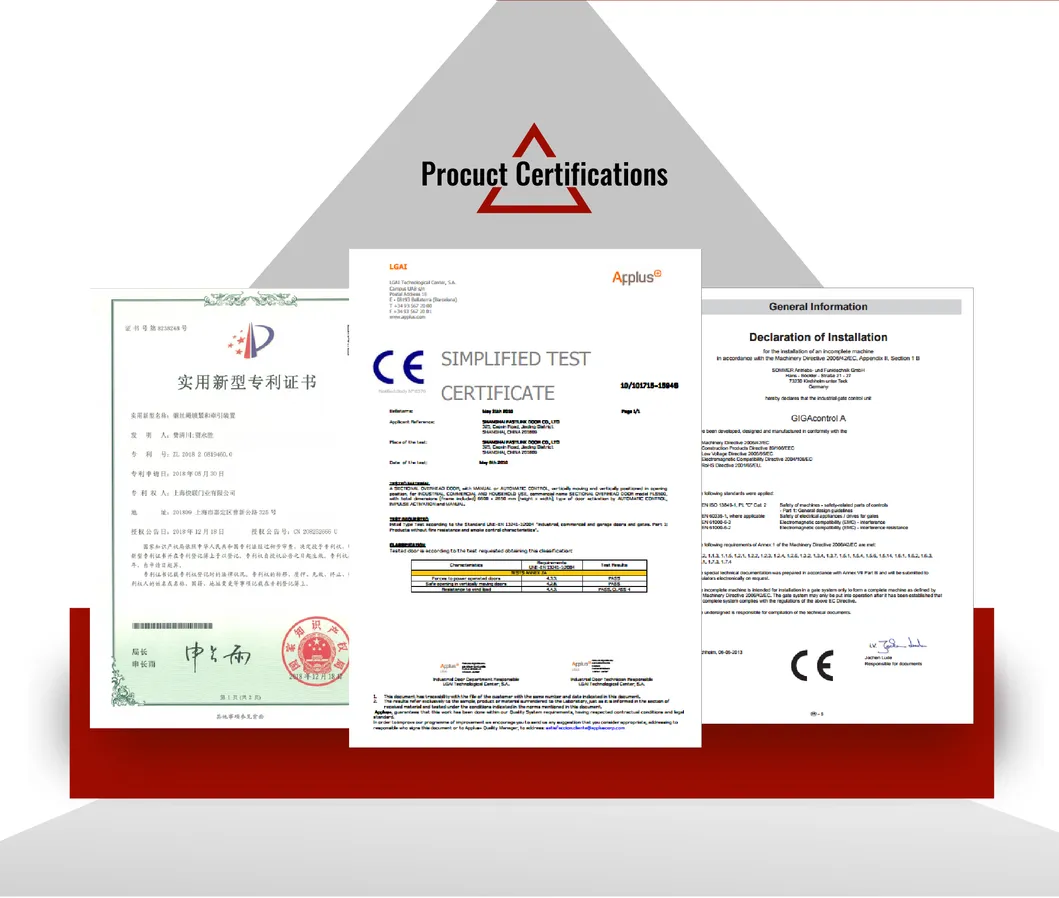

Certification

CE / CPR / UL

Position

Industrial / Workshop

Panel Thickness

42mm / 65mm

Wind Resistance

700pa (Grade 1)

Thermal Property

K=0.7W/(m².K)

Core Density

48kg/m³ PU Sandwich

Speed

0.25m/s

★

Product Description & Features

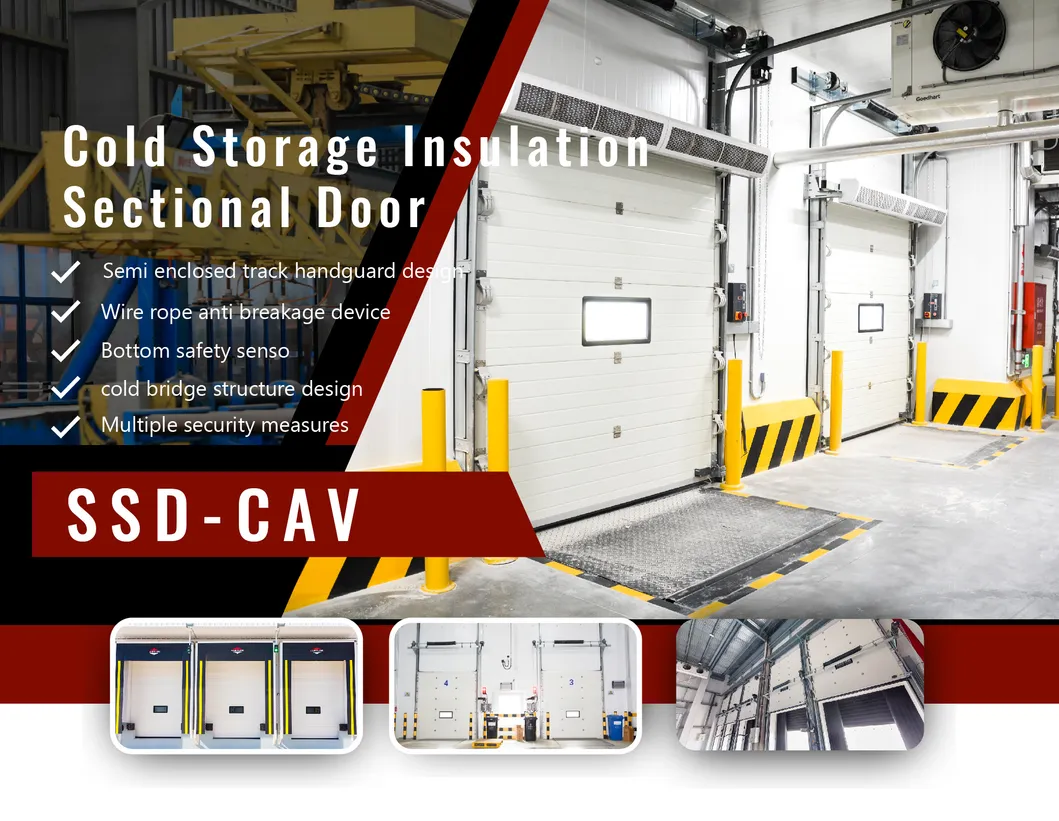

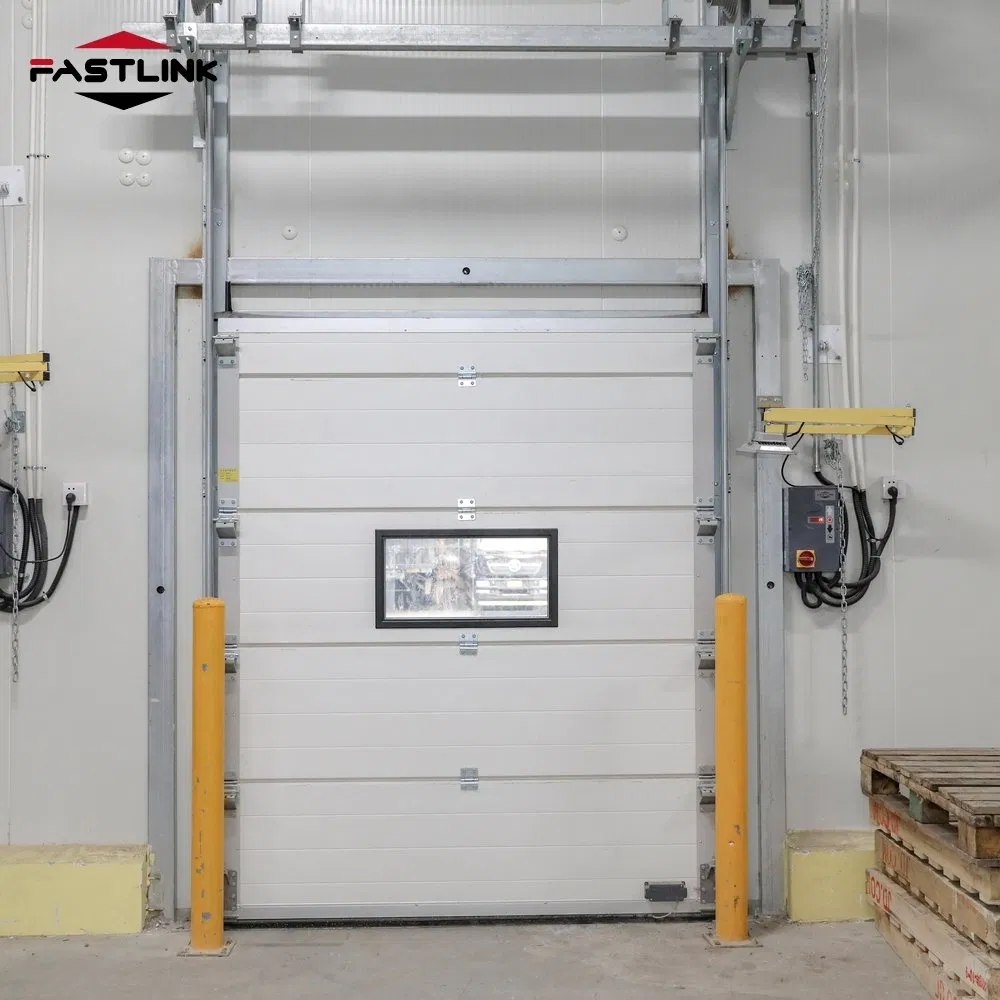

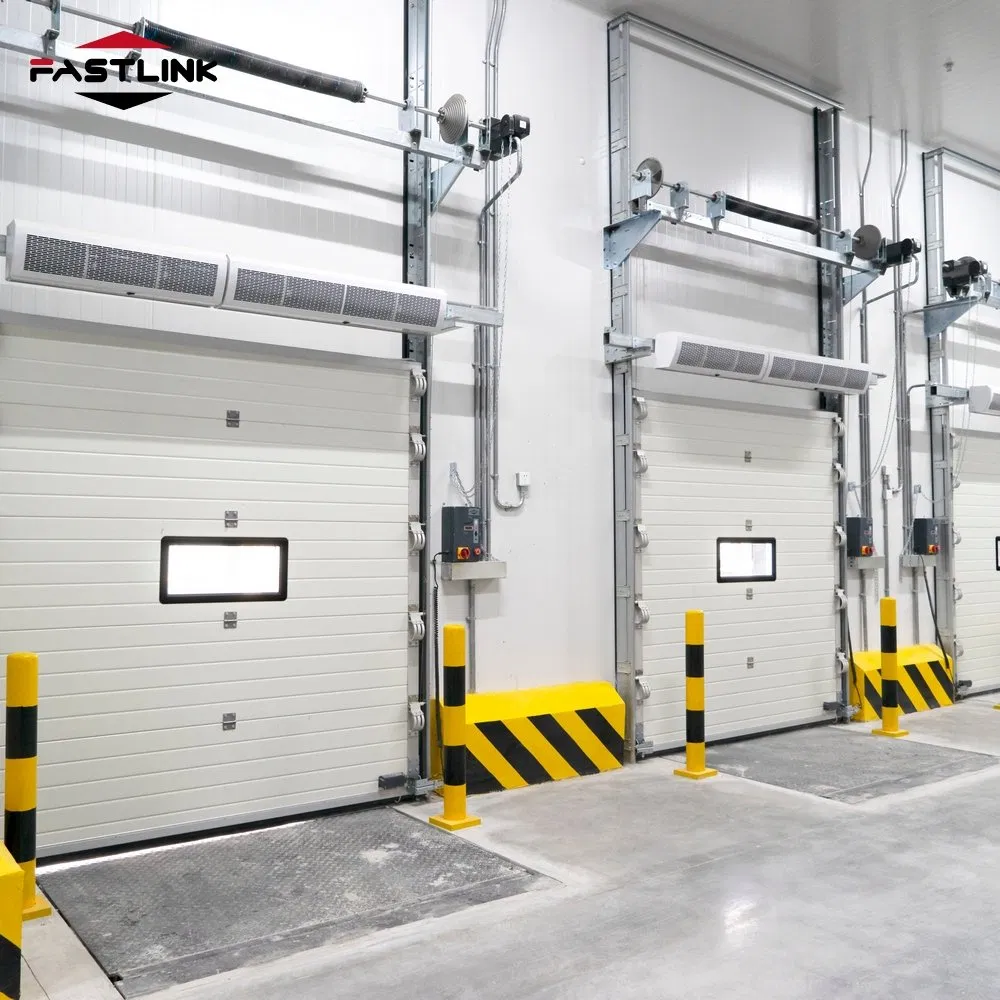

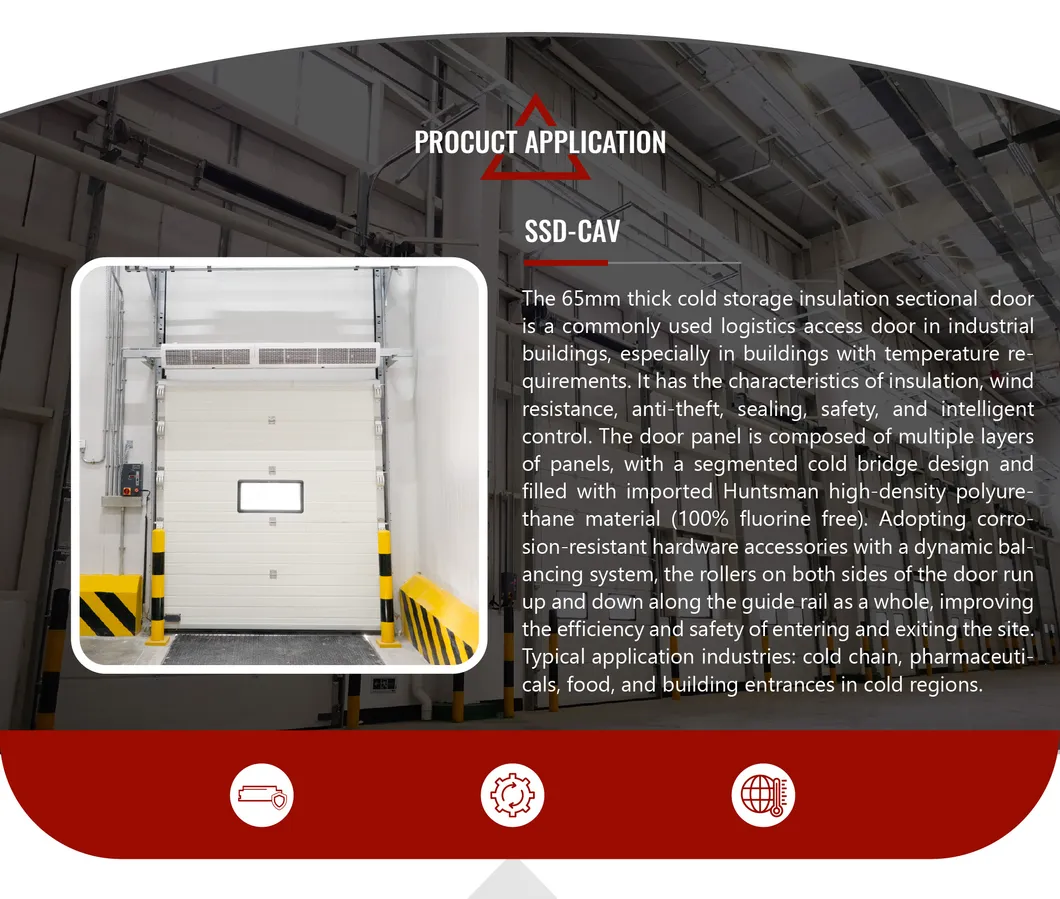

Core Attributes	Industrial cold storage insulated sectional door system.

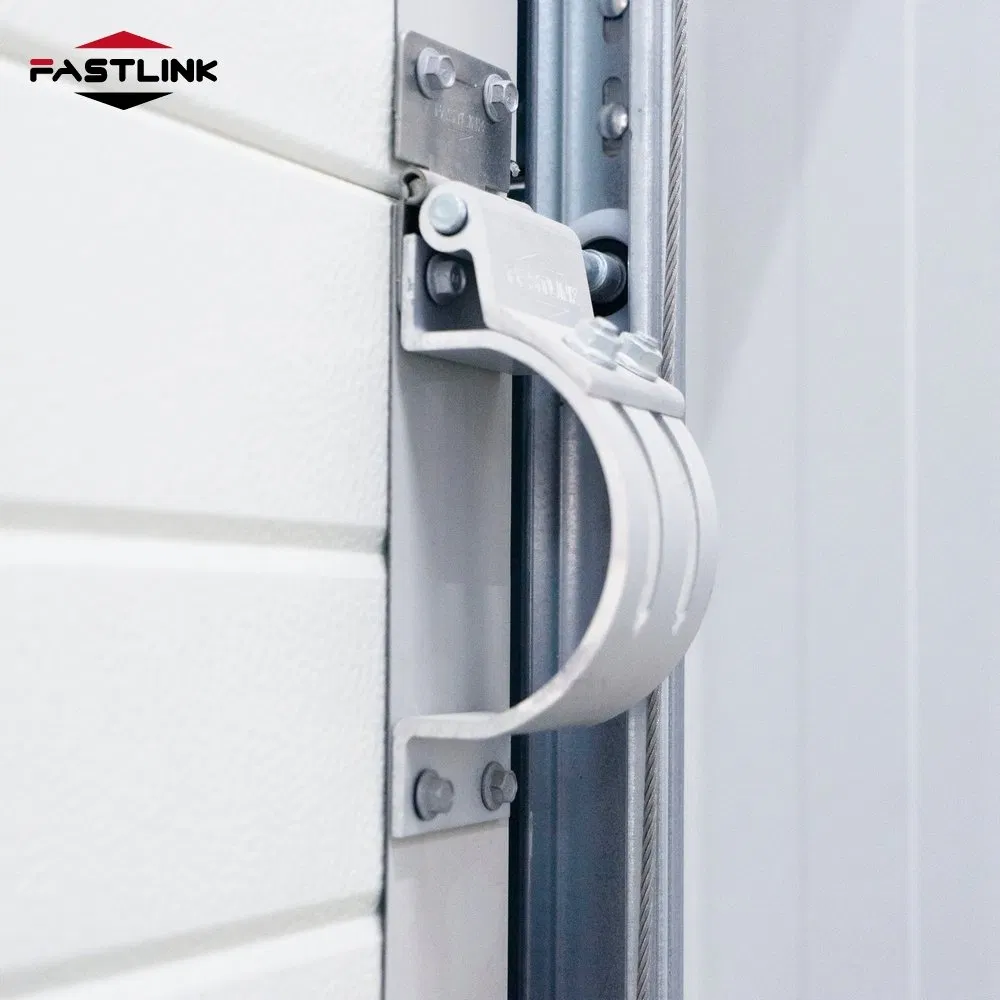

Materials	PU sandwich panel with embossed metal surface; stainless steel hinges and aluminum pulley bearings.
Polyurethane	High-quality insulation brand, freon-free, closed-cell rate >95% for superior thermal performance.

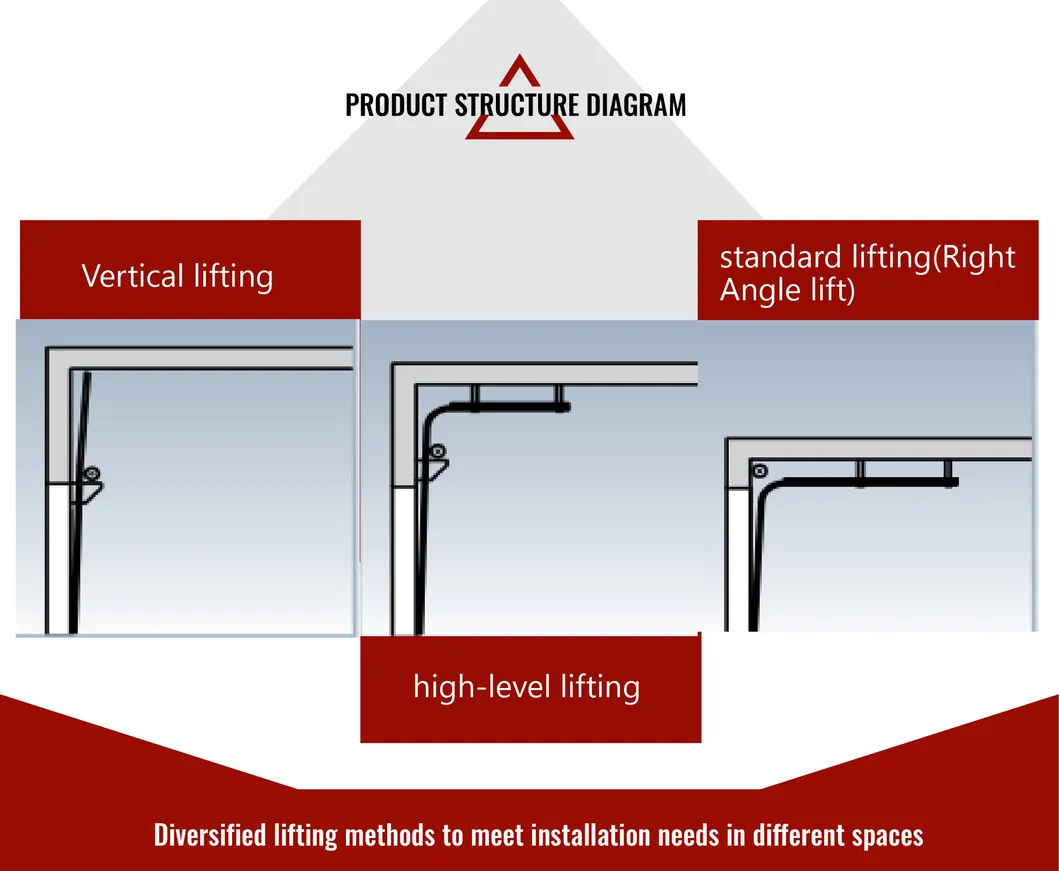

Lifting Modes	Supports Vertical Lift, High Lift, and Standard Right Angle Lift.

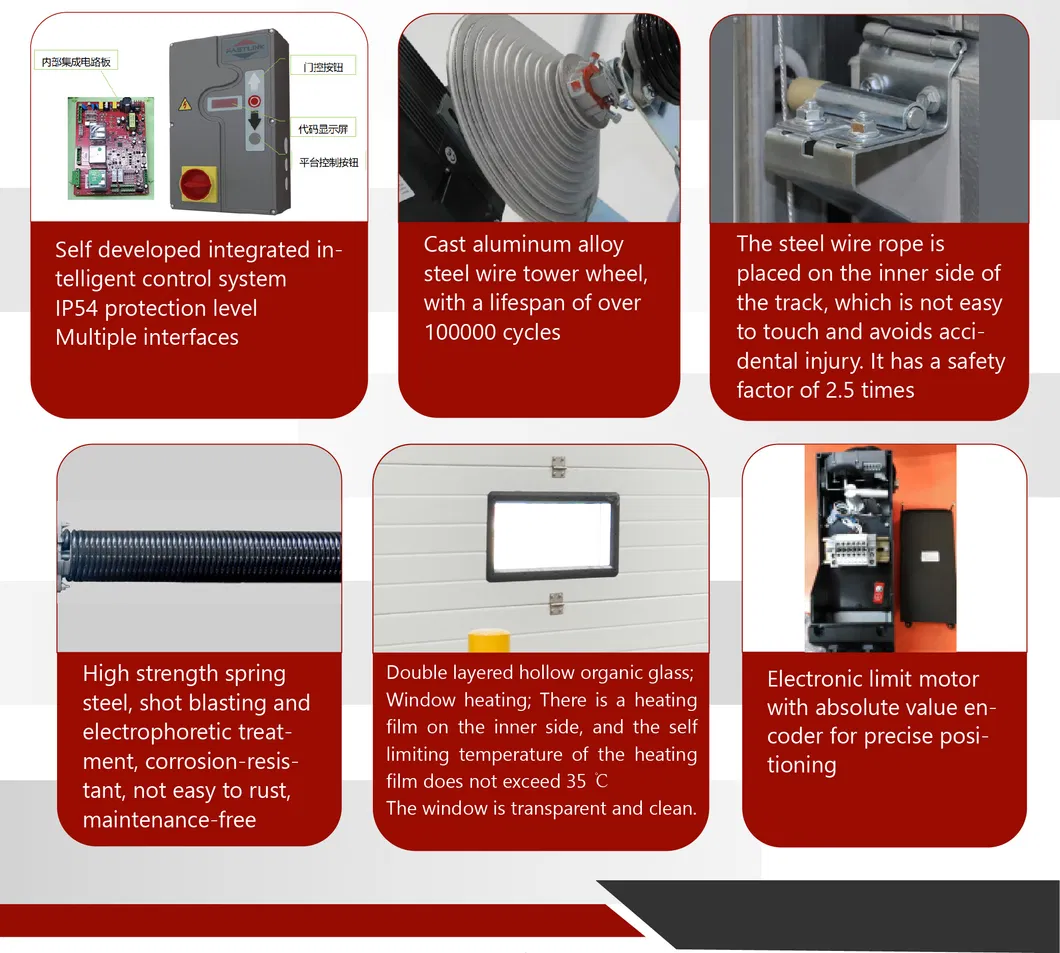

Control System	Intelligent system with fault code display, fire linkage, interlock function, and self-safety protection.

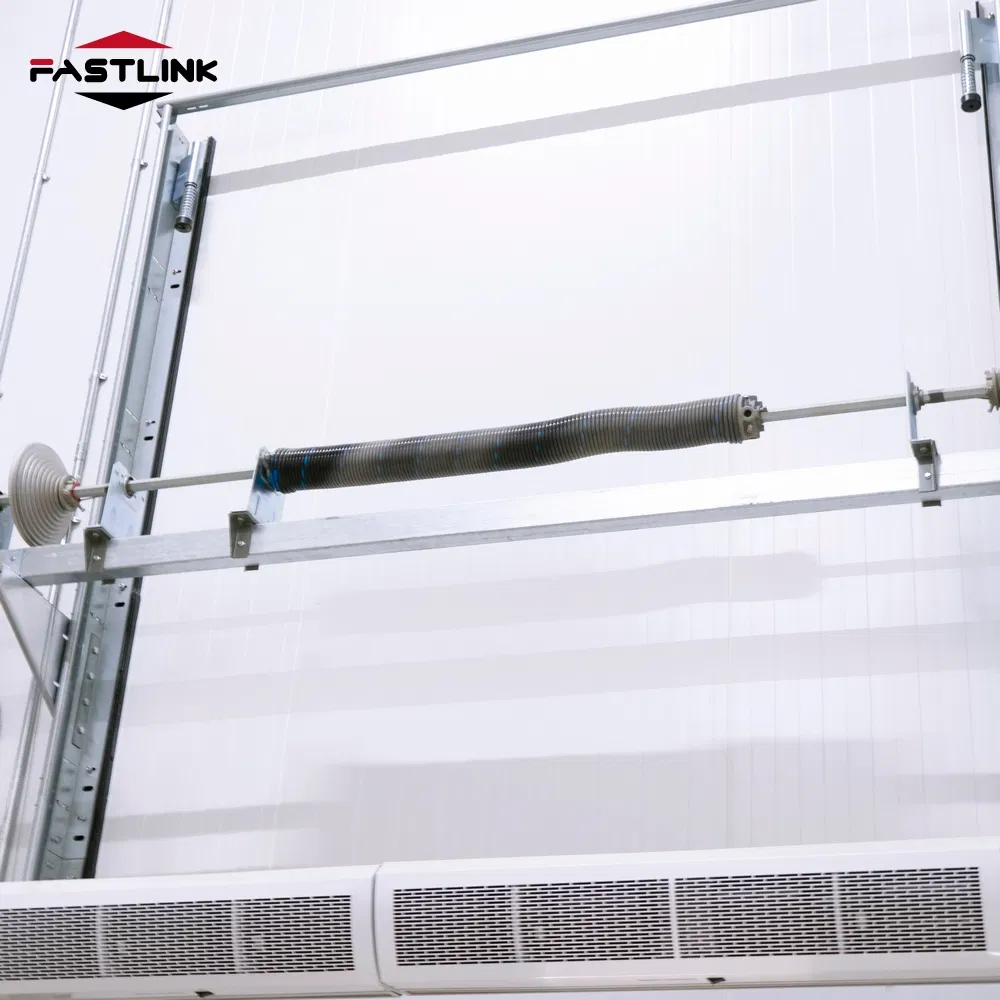

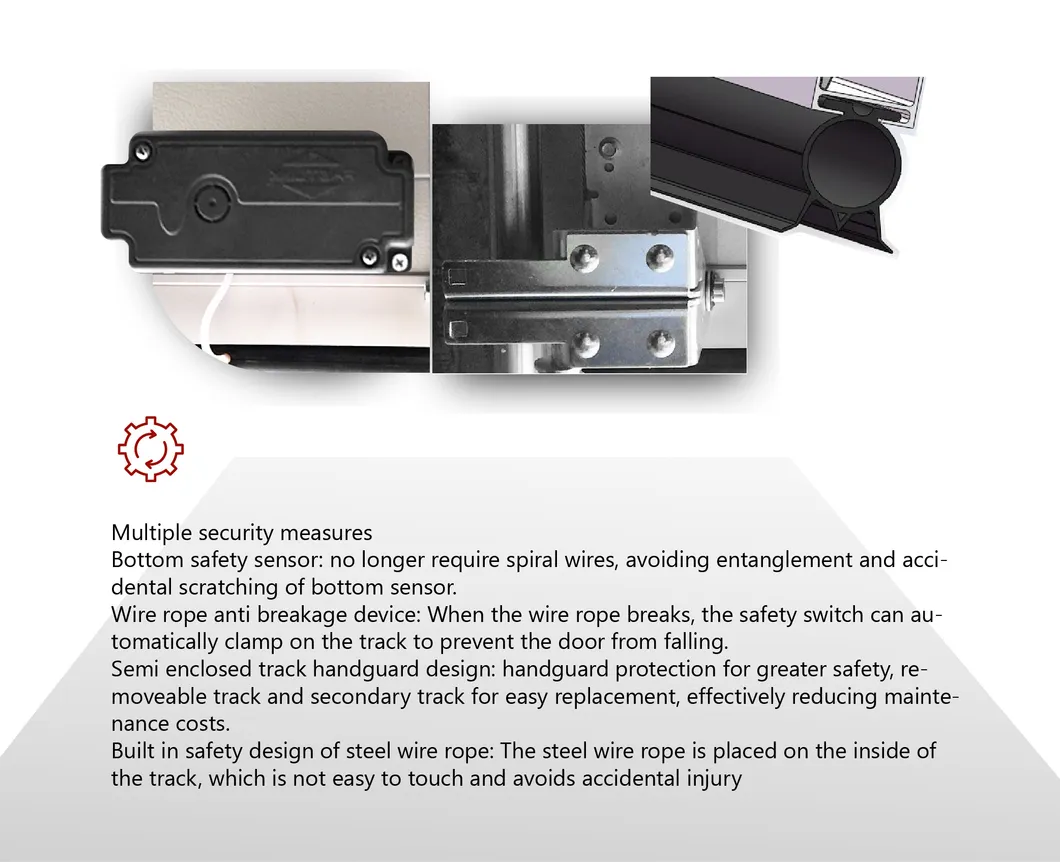

Safety Gear	Includes wire rope anti-breaking devices, spring anti-breakage protection, and anti-pinch panel design.

⚙

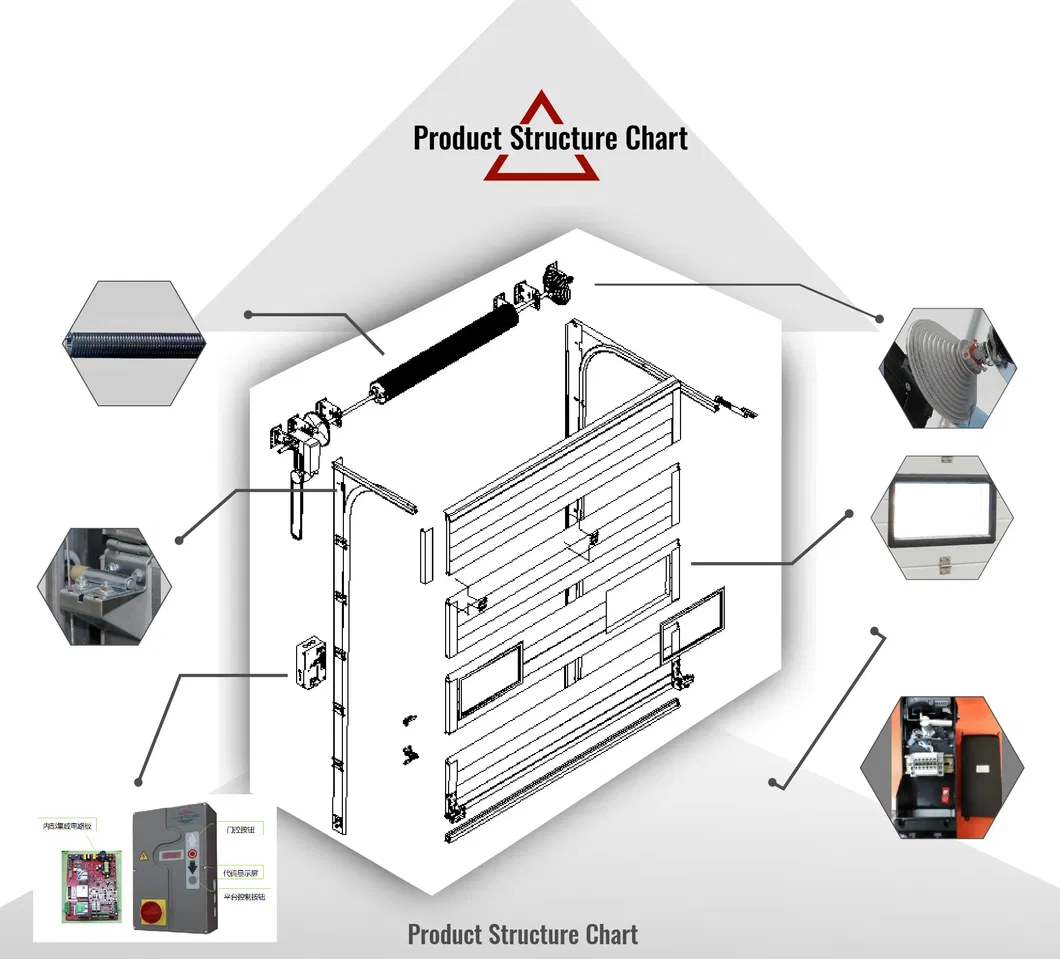

Technical Detail Display

Frequently Asked Questions

Is the insulated sectional door safe to use?

Yes, it is designed with comprehensive safety features including bottom panel rebound resistance, anti-breakage protection for steel wire ropes and springs, and an anti-pinch panel design. It has passed CE certification.

How much installation space is needed above the door opening?

A minimum installation space of 500mm is required above the door opening to accommodate the track and lifting mechanism.

Can these sectional doors be used in residential garages?

As long as the installation space is sufficient for the track system, these doors can effectively be installed in garages as vehicle access doors.

What is the expected service life of these doors?

With normal maintenance, these doors can be used for more than 10 years. Proper usage and regular maintenance can significantly extend the service life.

What are the thermal insulation properties of the panels?

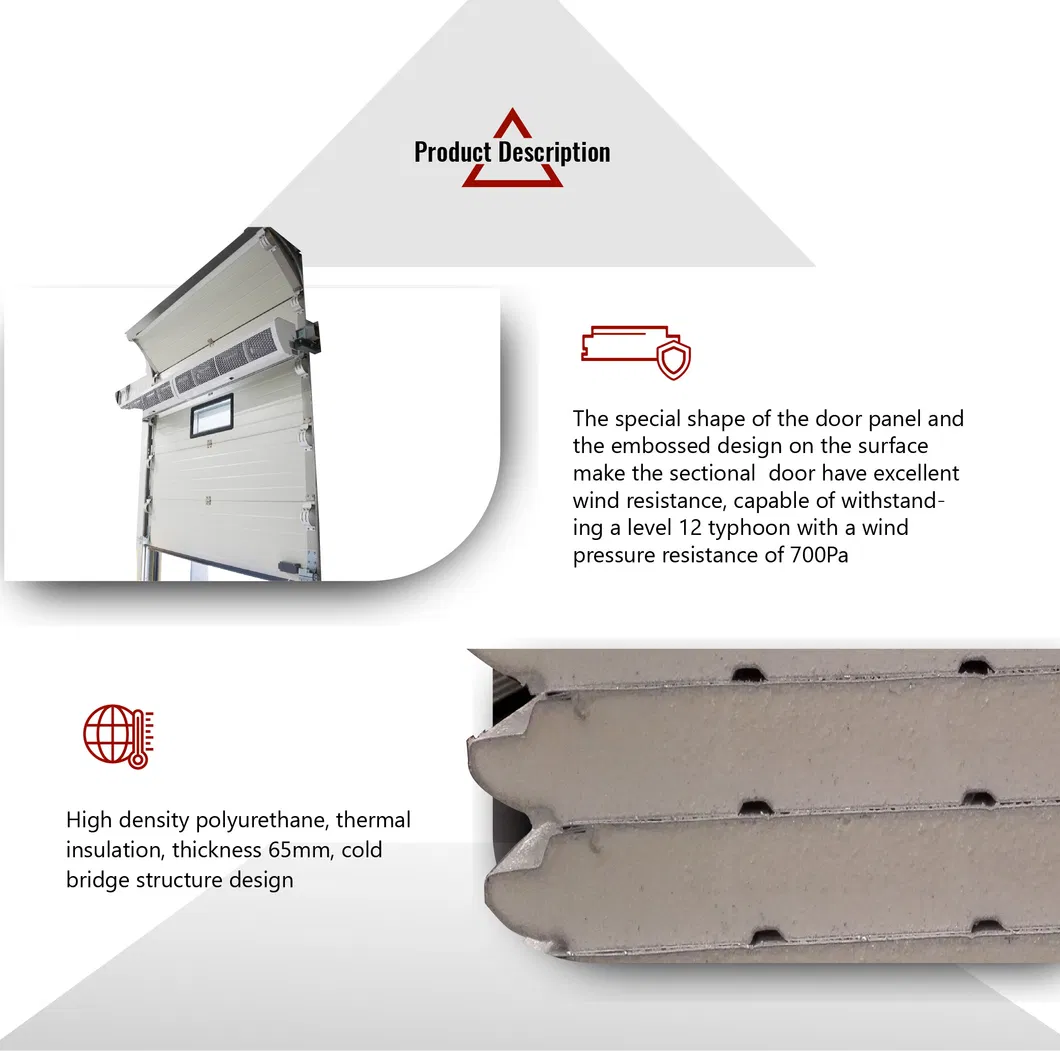

The door panels feature high-density PU sandwich construction (48kg/m³) with a thermal insulation property rating of K=0.7W/(m².K), making them ideal for temperature-controlled environments.

Are the doors resistant to harsh weather conditions?

Yes, they are designed for wind resistance up to 700pa (Grade 1 watertight) and feature high-grade air tightness (Grade 7), providing excellent protection against wind and rain.
