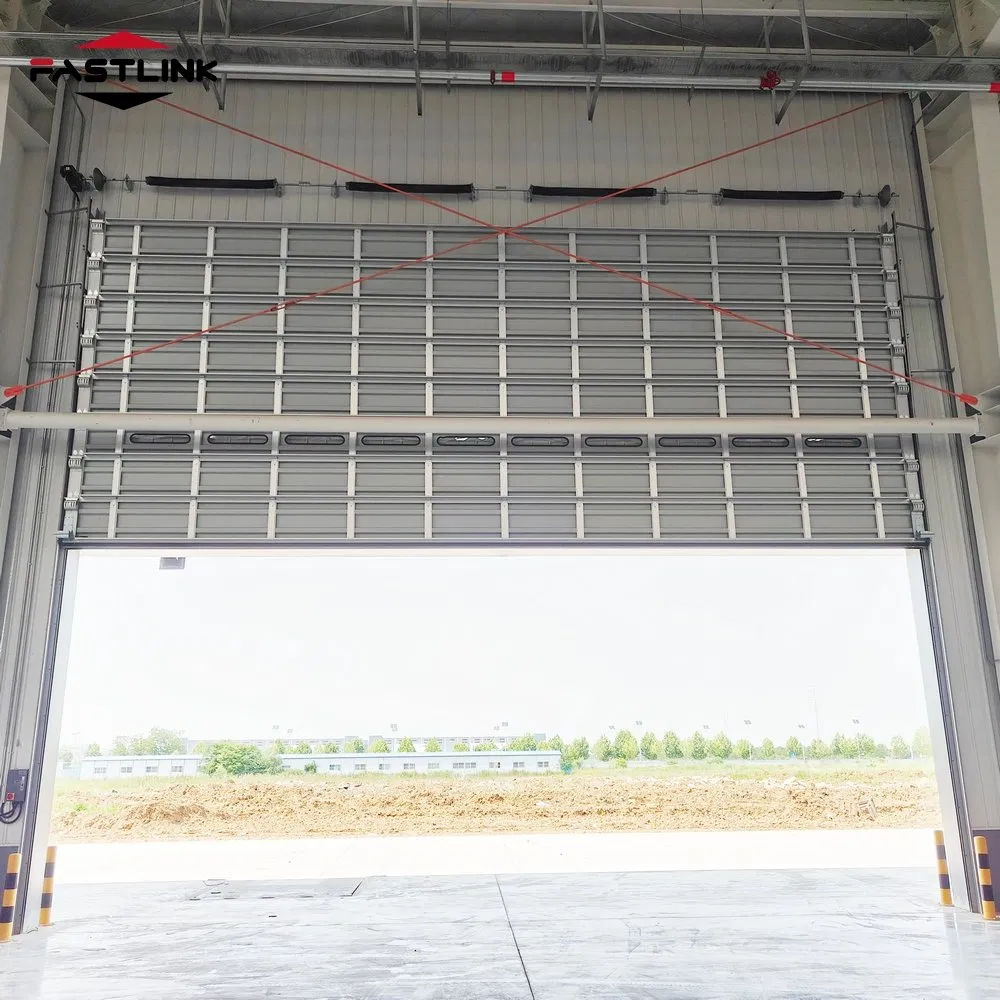

Fastlink Customized Logistic Aluminum Alloy Steel Single Panel Plank Overhead Sectional Doors

1 / 5

Fastlink Customized Logistic Aluminum Alloy Steel Single Panel Plank Overhead Sectional Doors

Customization:	Available
After-sales Service:	2 Years
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.

SSP-SAS

Material

Aluminum Alloy

Type

Industrial Sectional Doors

Open Style

Sliding

Opening Type

Electric/Manual

Color

RAL9002/RAL9006/RAL7040/RAL7045

Panel Height

500mm

Feature

Windproof (700PA)

Speed

0.25m/s

Certification

CE, CPR, UL

Technical Details

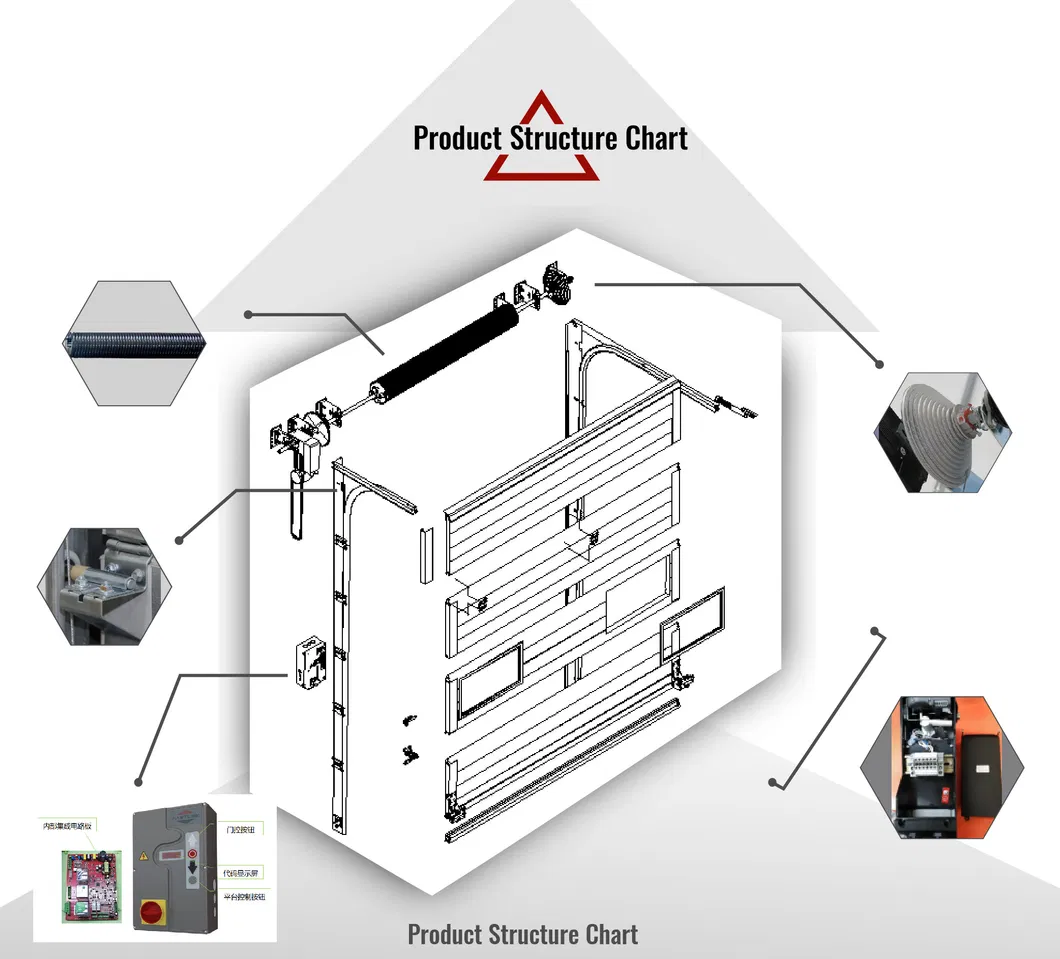

Attribute Configuration

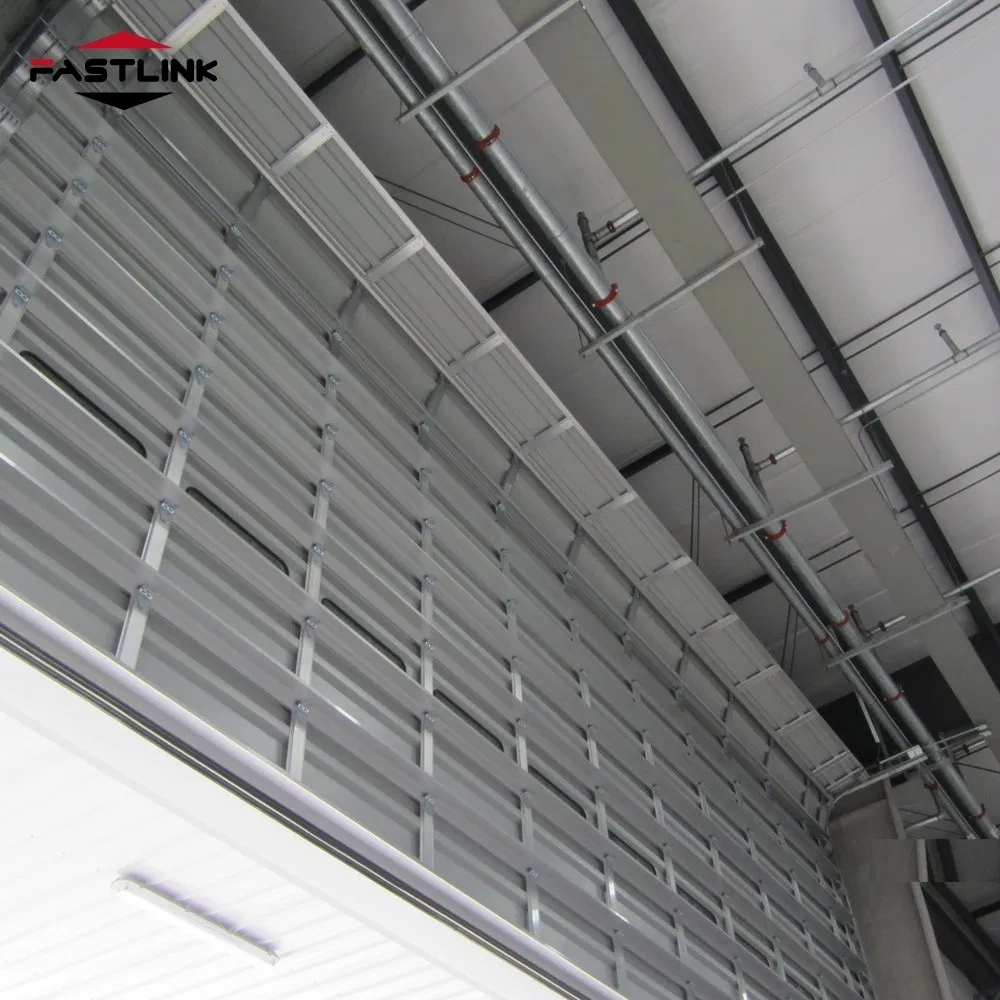

Door Panel Type	Aluminum alloy profiled plate, total thickness 50mm
Size Range	Min: 2000x2000mm; Max: 11500x6000mm

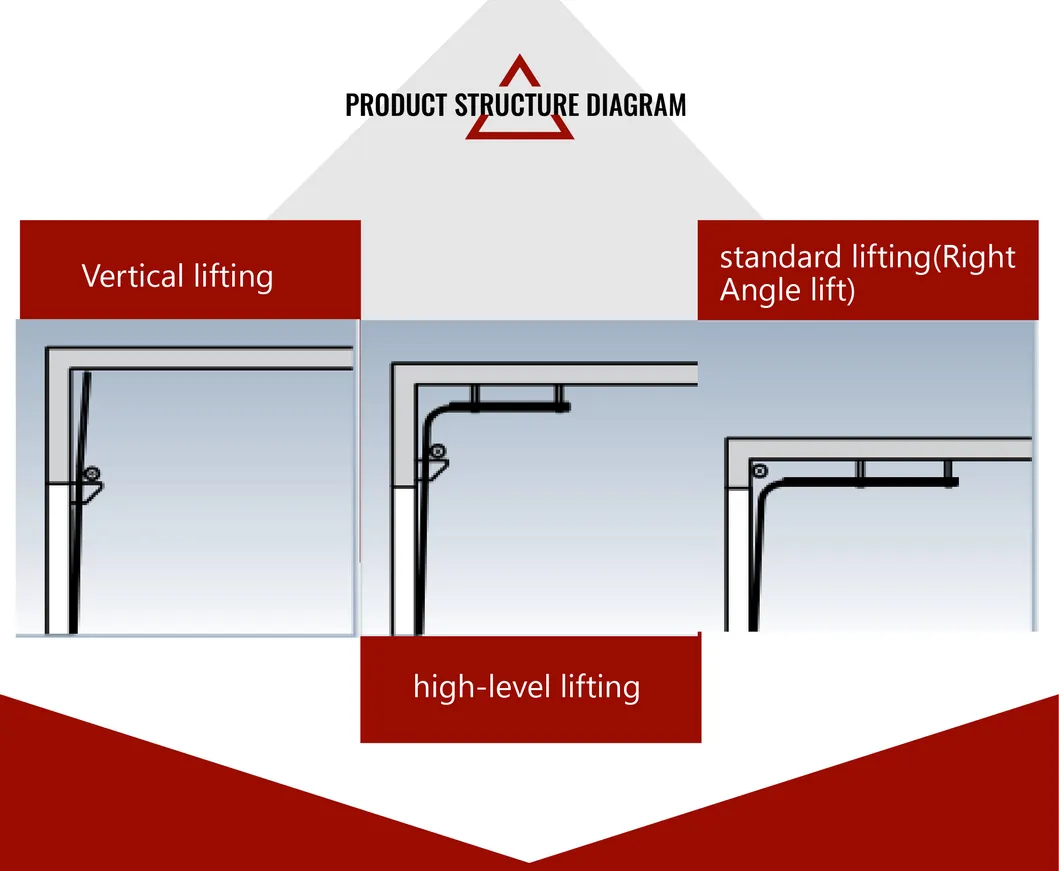

Lifting Method	Vertical Lift / High Lift / Standard Lift
Motor	Electronic limit motor with absolute encoder for precise positioning
Torsional Spring	High-strength spring steel, shot blasting electrophoresis treatment
Control Box	Intelligent system with fault code display and fire linkage

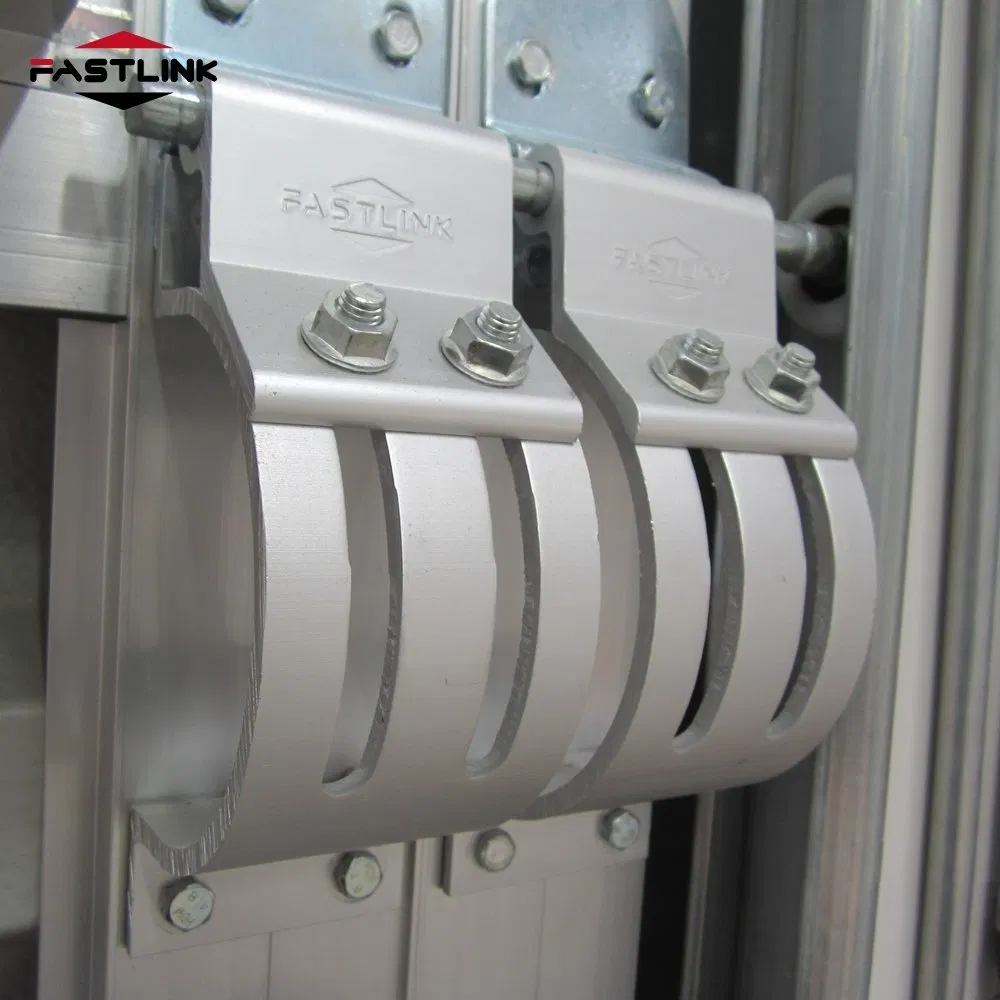

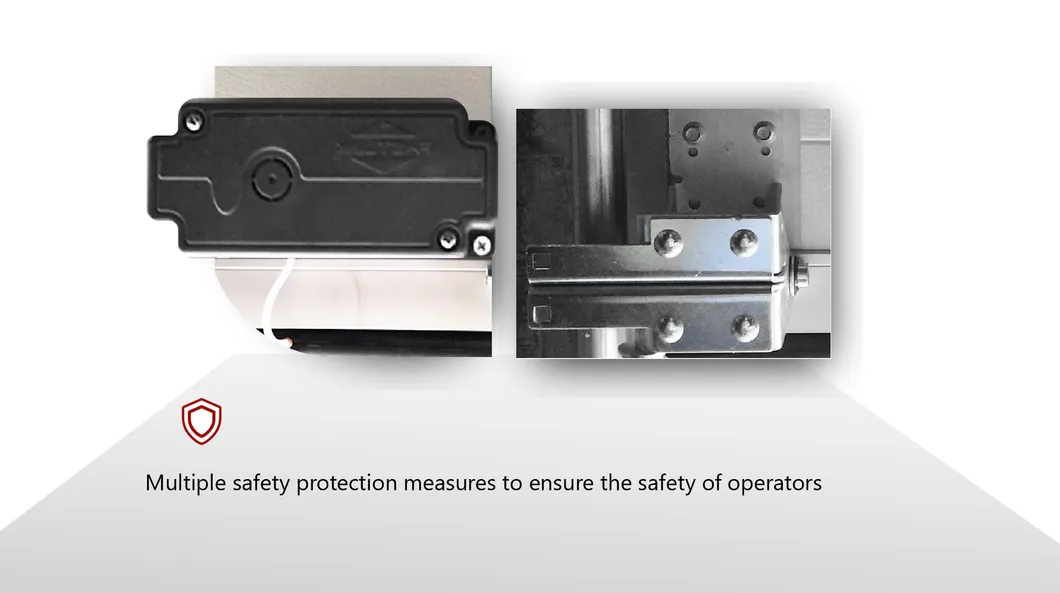

Security Devices	Wireless bottom safety device, Wire rope anti-breaking device

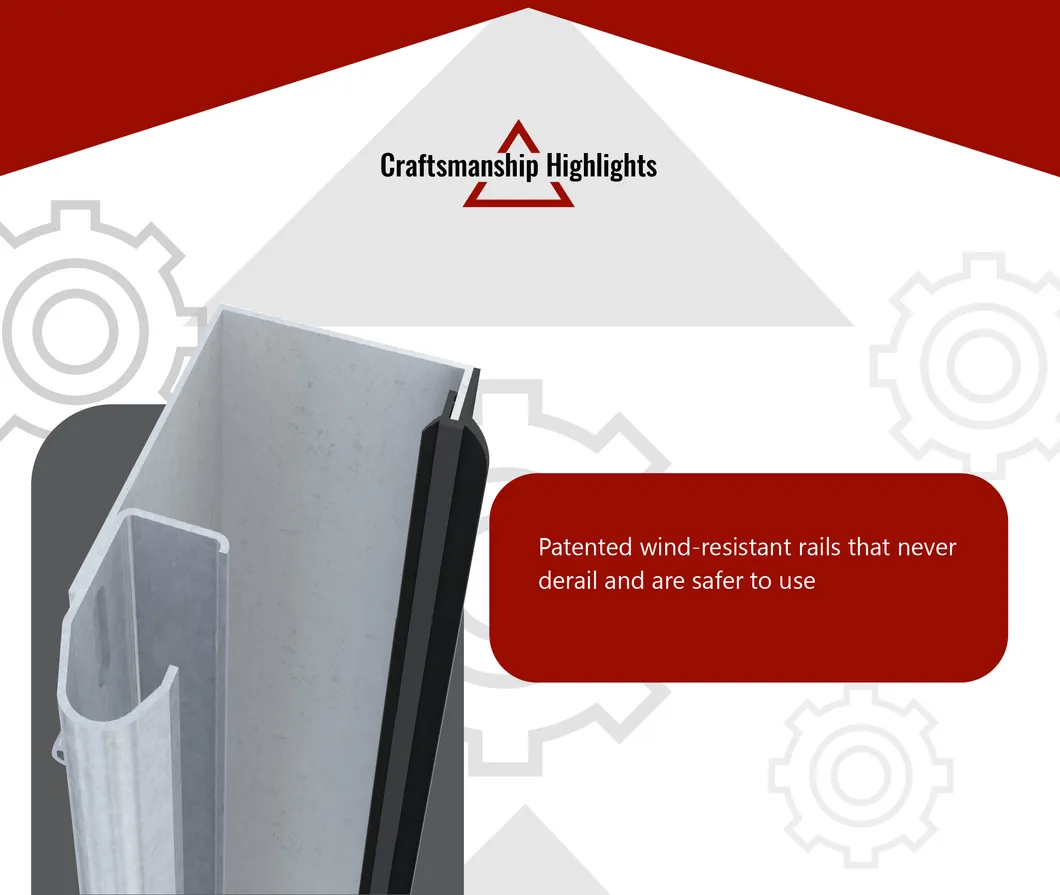

Hand Guard	Semi-closed track design for user protection
Supply Ability	3000 sets per month
Package Size	1016.40cm * 66.40cm * 97.10cm

Product Showcase

Frequently Asked Questions

1. How much installation space do I need to reserve above the door opening?

You need to reserve a minimum space of 500mm above the door opening to accommodate the lifting mechanism.

2. Can single panel sectional doors be used in garages?

Yes, as long as the installation space requirements are satisfied, it can be installed in a garage as an access door.

3. Which locations are optimal for installing this door?

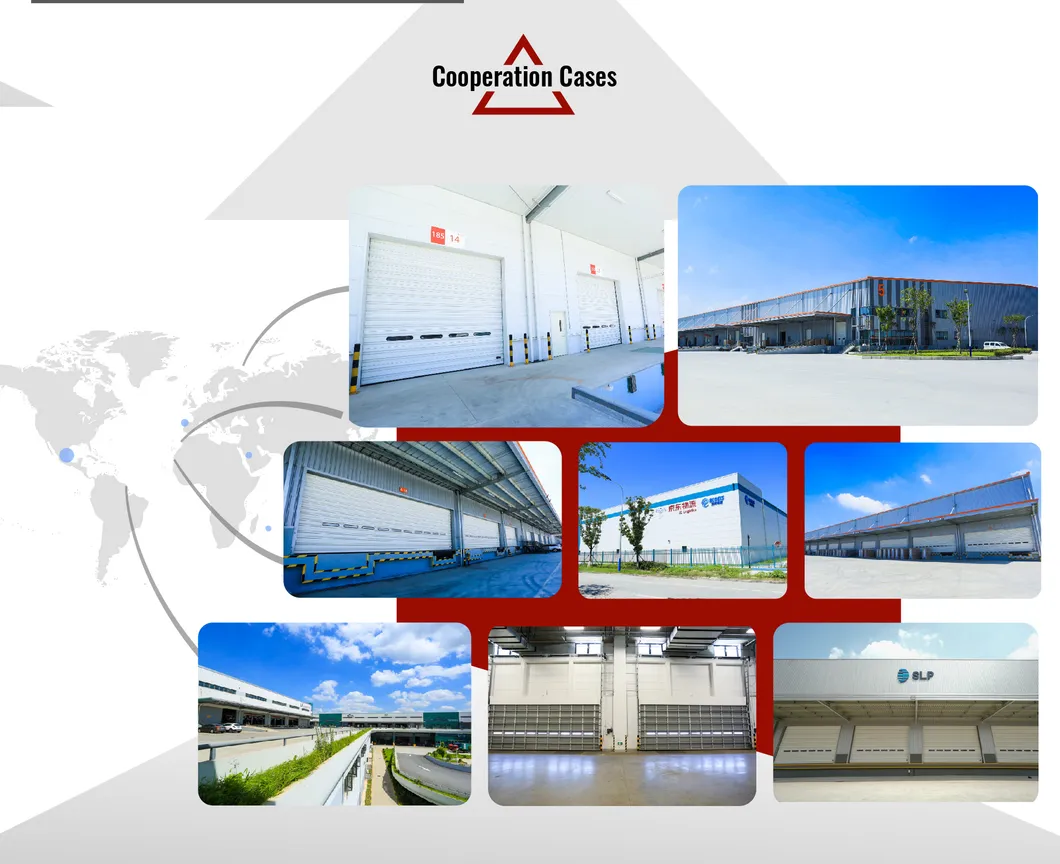

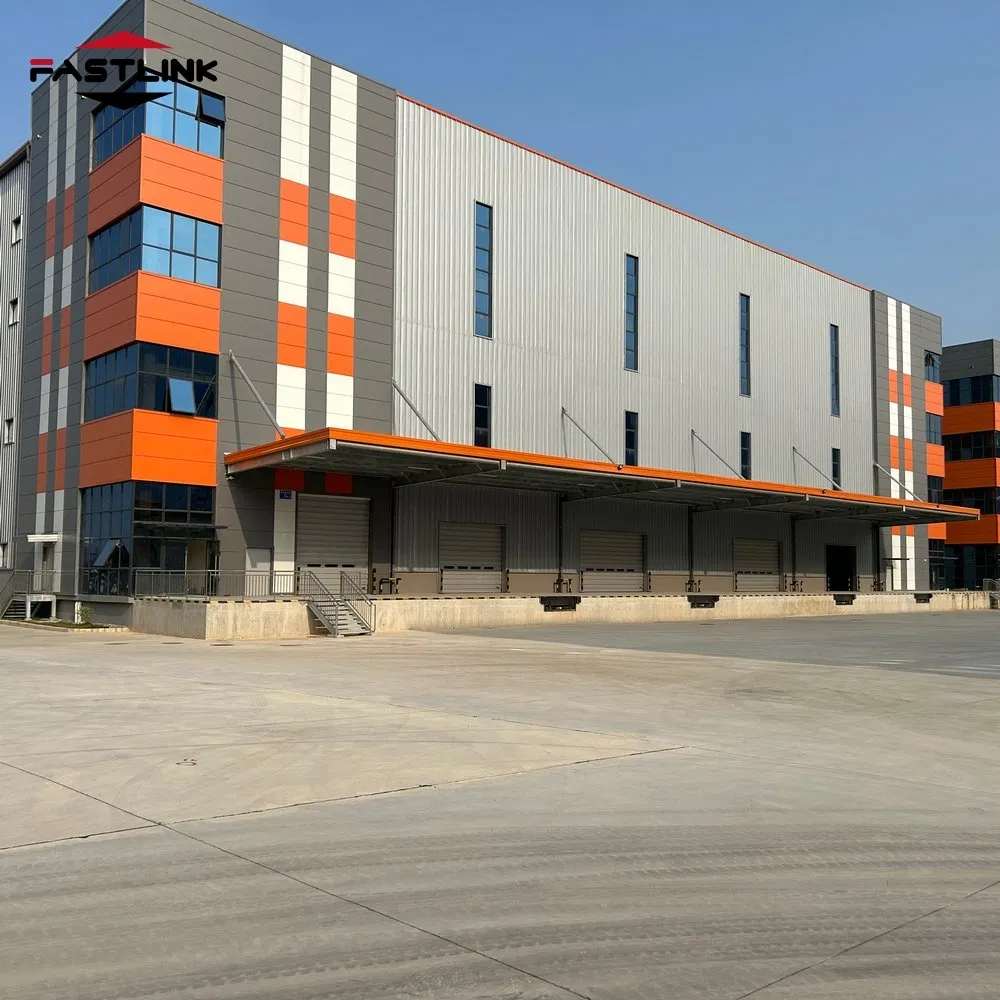

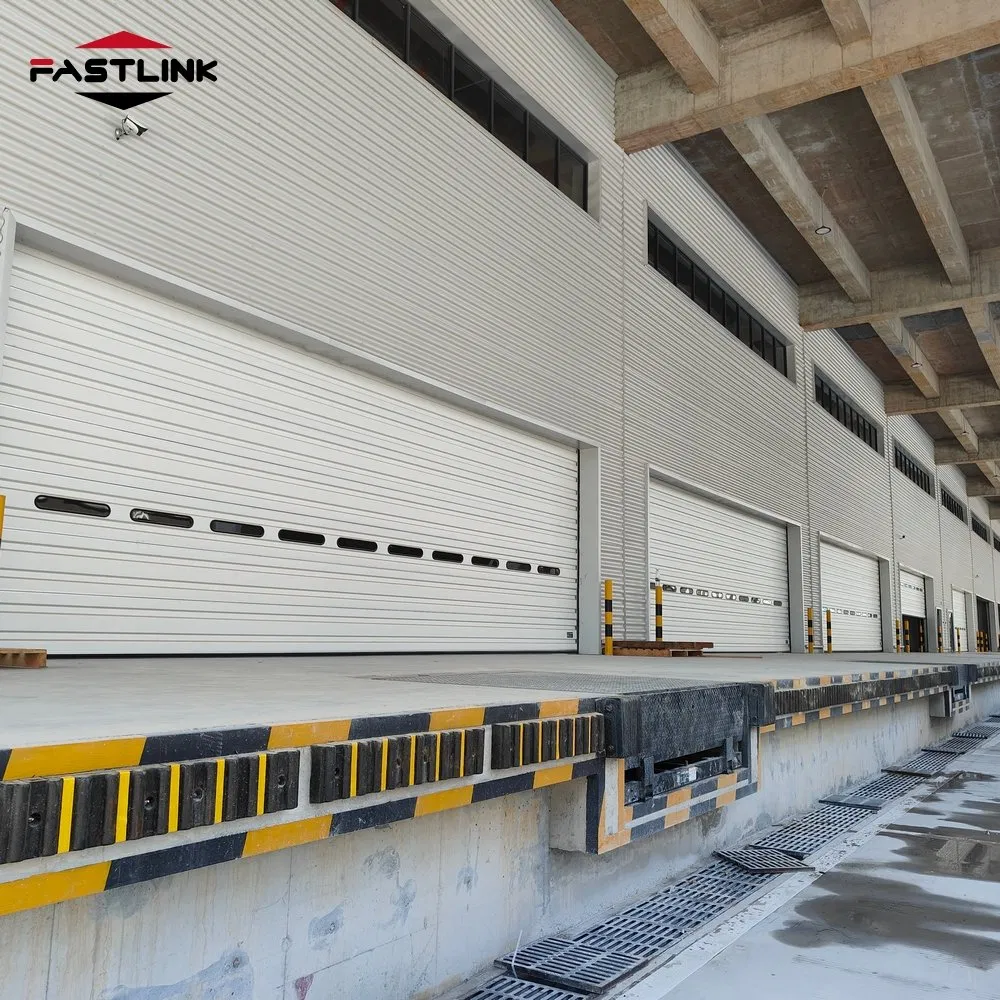

The aluminum single panel sectional door is ideal for logistics warehousing, industrial plants, coastal areas with high winds, and cold storage buildings with specific insulation requirements.

4. How long can a single panel sliding door typically last?

With normal maintenance and correct usage, these doors can last more than 10 years. Regular servicing can further extend its service life.

5. What safety features are included with this sectional door?

Standard security configurations include a wireless bottom safety device, a wire rope anti-breaking device, torsional spring anti-breakage functions, and a semi-closed track hand guard design.

6. Are customized colors and windows available?

Yes, both door panel colors and window additions are optional and can be customized to match your project requirements.
