Commercial Shopfront Transparent Clear View Polycarbonate or Tempered Glass Aluminum Alloy Frameless Sliding Sectional Overhead Garage Door for 4s Shop Store

1 / 5

Commercial Shopfront Transparent Clear View Polycarbonate or Tempered Glass Aluminum Alloy Frameless Sliding Sectional Overhead Garage Door for 4s Shop Store

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔵 Basic Specifications

Model NO.

YO-Sectional

Material

Aluminum Alloy

Type

Revolving

Open Style

Revolving / Induced

Special Function

Thermal Insulated

Certification

ISO9001, CE

Application

Cold Room, Warehouse, Workshop

Panel Thickness

40mm

Wind Resistance

28-35m/s (Class 10-12)

Power Supply

1-Phase 220V / 3-Phase 380V

📖 Product Description

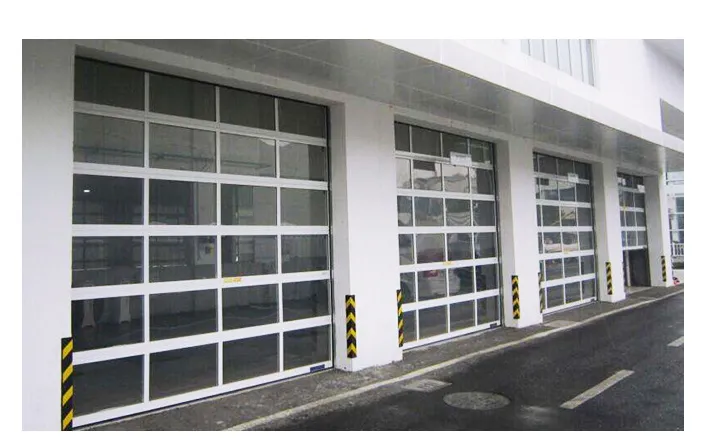

Sectional door has a beautiful appearance, high strength, low noise and insulation properties, making it widely used in areas with high cleanliness requirements, such as factories, medicine, food, electronics, printing, supermarkets, etc.

📊 Technical Data

Motorized Transparent Sectional Door Specifications
Max Dimension (W*H)	12000mm * 8000mm
Opening & Closing Speed	20-40cm/s
Door Panel Thickness	40mm / 50mm / 75mm / 100mm
PU Density	48±2kg/m³
Sound Insulation	24DB
Insulation Level	0.38W/M°C
Thermal Conductivity	<= 0.033W/M.K
Water Tightness	30Pa

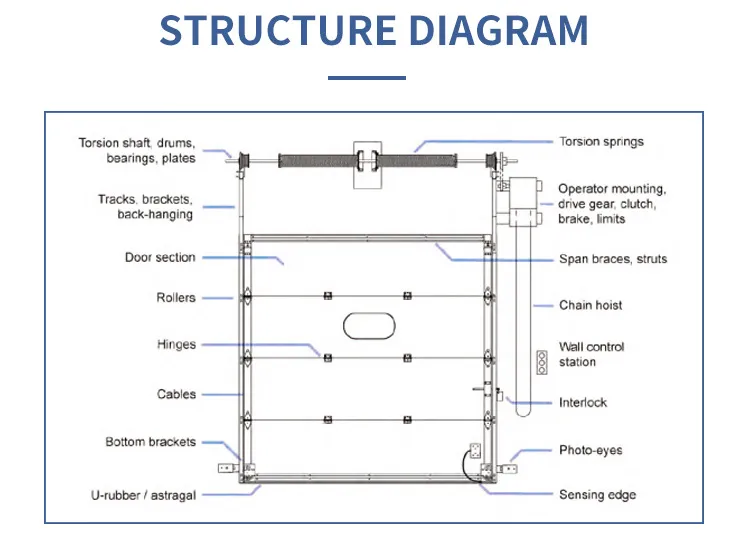

⚙️ Structure Diagram

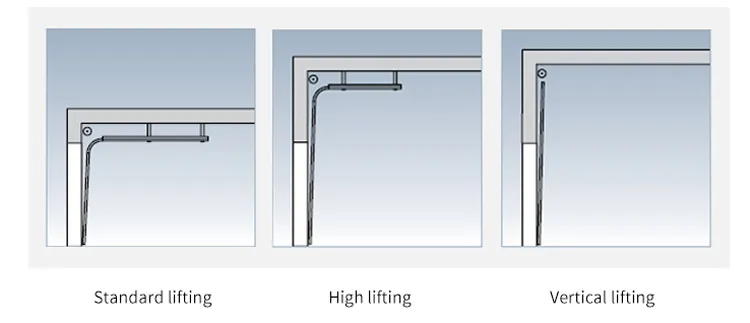

1. Lifting Mechanism

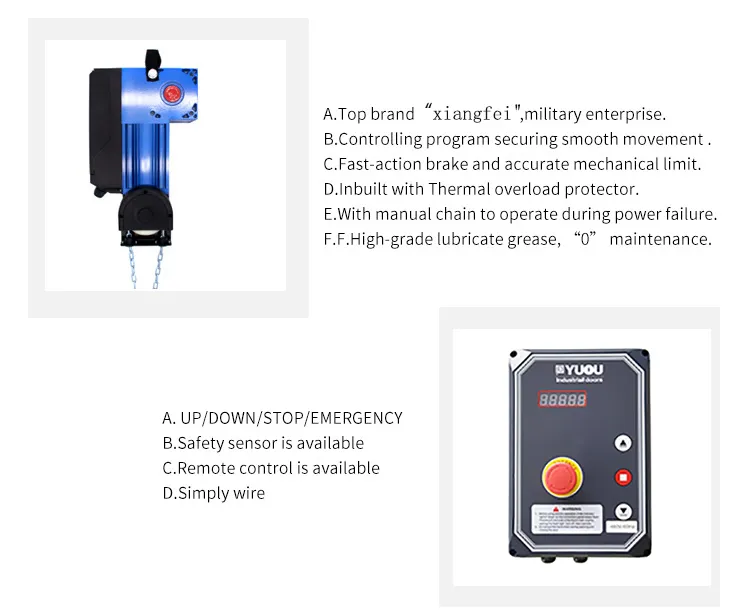

2. Motor & Controller

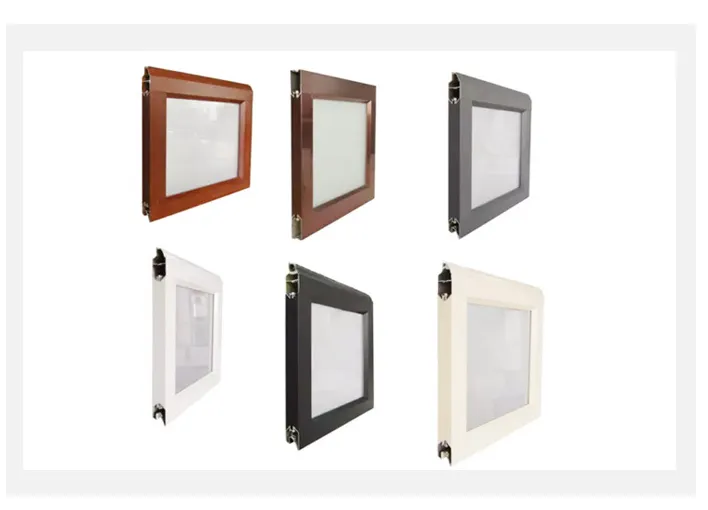

3. Panel Features (Finger Safe Style)

A. Two layer 1.2mm aluminum alloy, surface: Electrostatic coating. Total thickness: 40mm.

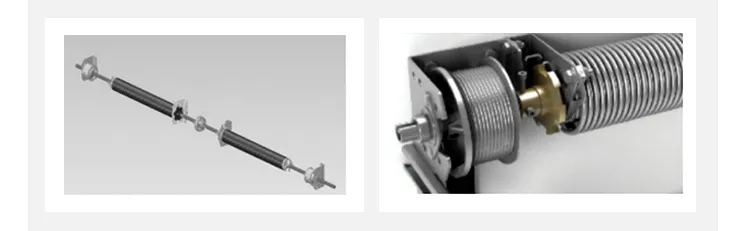

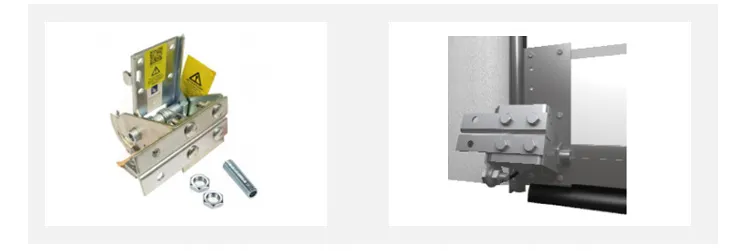

4. Safety Systems

Spring brake device: Anti-broken mechanism.
Service life: 100,000 opening and closing cycles.
Driving force: 140N.
Accident Dropping Safety Device: Equipped with steel cord, securing safety within 5cm.

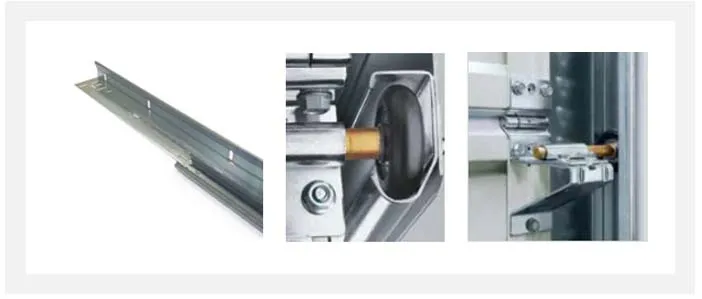

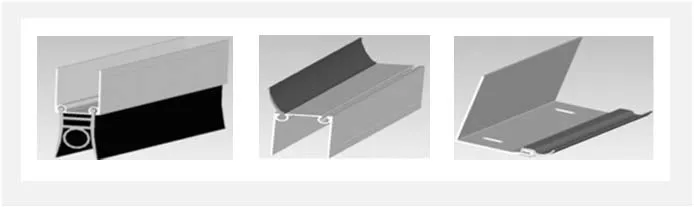

5. Rails & Sealing

EPDM Sealing rubber is installed on the top, bottom, and periphery. Cold resistant and anti-broken.

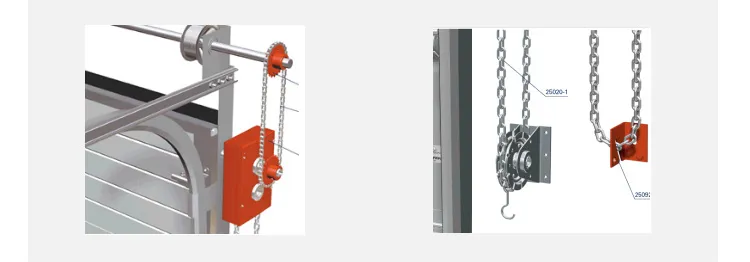

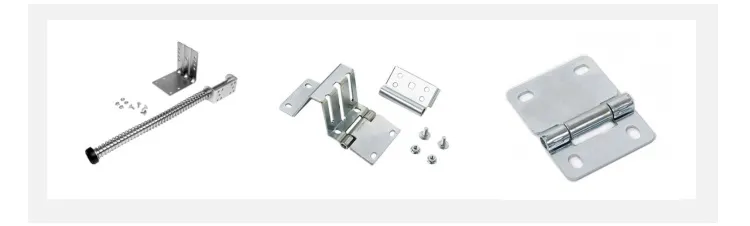

6. Hardware & Manual Device

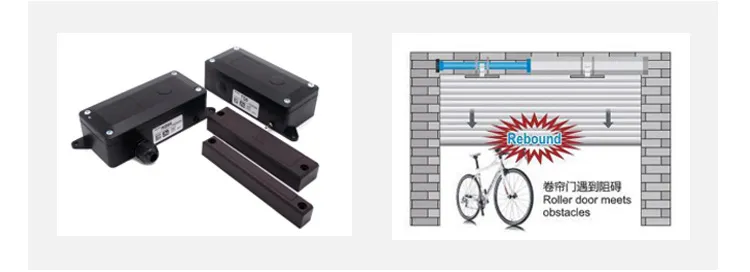

7. Wireless Safety Airbag

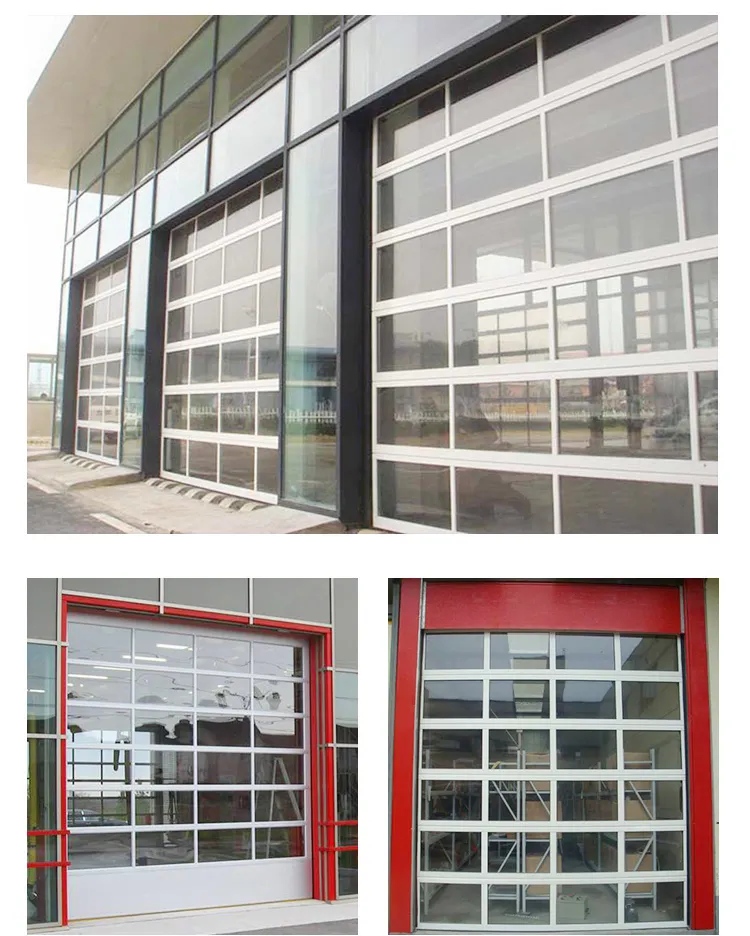

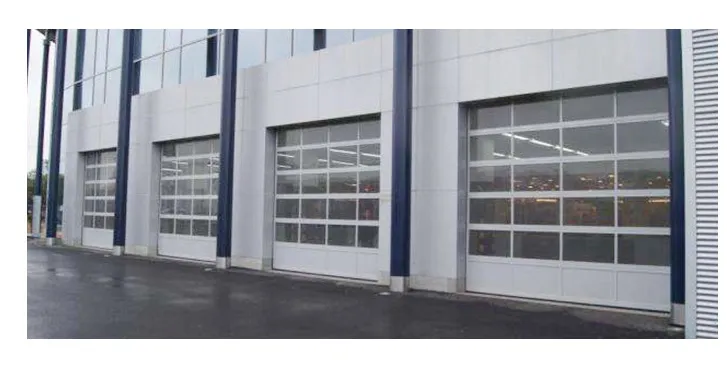

📸 Real Product Gallery

❓ Frequently Asked Questions

What are the primary applications for this sectional door?

These doors are ideal for areas requiring high cleanliness and insulation, such as food factories, pharmaceutical workshops, electronics plants, warehouses, and supermarkets.

What is the maximum size available?

The maximum dimensions for the motorized sectional door are 12000mm in width and 8000mm in height.

Does the door provide good thermal insulation?

Yes, it features PU insulation with a density of 48±2kg/m³ and thermal conductivity of <= 0.033W/M.K, providing excellent thermal protection.

How wind-resistant is the door structure?

The door is designed to withstand wind speeds of 28-35m/s, which corresponds to Class 10-12 wind resistance.

What safety features are included?

Safety features include a spring brake anti-broken device, an accident dropping safety device (steel cord), and optional wireless safety airbags.

What power supply is required for the motor?

The system supports either a 1-Phase 220V or a 3-Phase 380V power supply at 50/60Hz.
